Hydrogen solutions
Hydrogen system solutions and integration including:
- System design (both fuel cell and electrolyser)
- Power electronic converter units
- Measurement and safety
- Graphical User Interfaces
- Control
- Mechanical integration
Designs for DC link voltages from 24 VDC to 400 VDC.
Main product features:
Fully functional set based on a PEM fuel cell.
Internal hydrogen storage and a DC/DC controller.
Short refueling time.
5,5 hours of continuous operation
Maintenance – free.
Main parameters:
Input voltage VDC
24 or 48
Continuous power kW
2
Maximum instantaneous power kW
10
Cell type
Hydrogen PEM
Hydrogen storage capacity g
700
Dimensions / weight width / height / depth mm / mm / mm kg
350/660/620 80
Communication standard
CAN
Coolling
Air
Powe electronics for hydrogen systems: DC/DC converters for fuel cells, electrolizer power supplies.

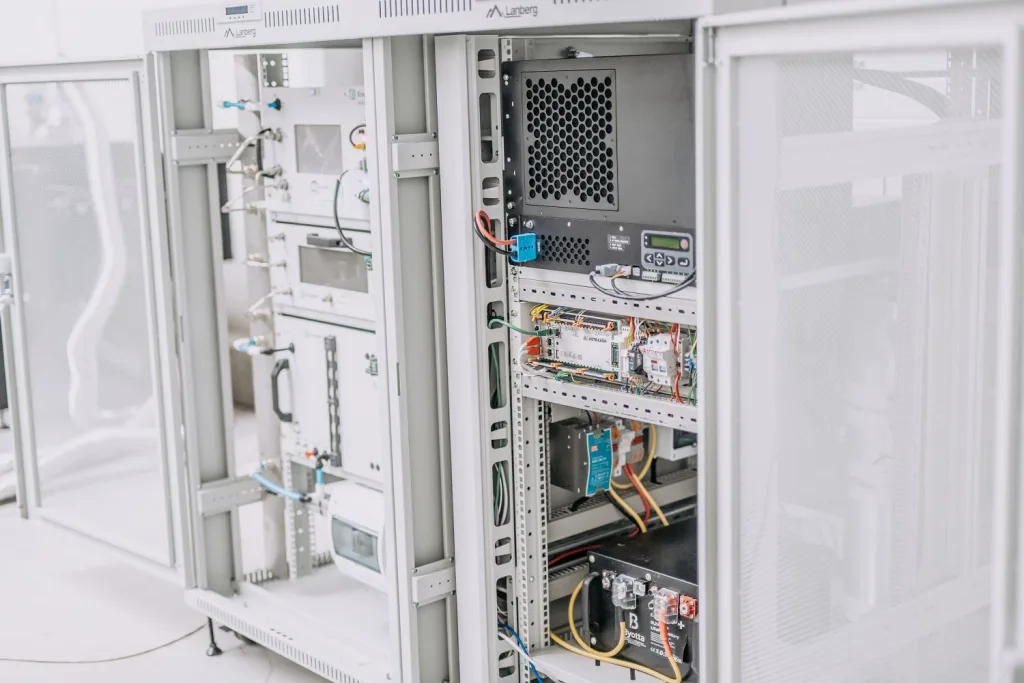

Educational P2X – H2P stand:
Input power
1 ph 230 VAC
Electrolyser
Enapter
Storage tank
Aluminium
Fuel cell
Horizon
Grid output
Inverter or smart load
